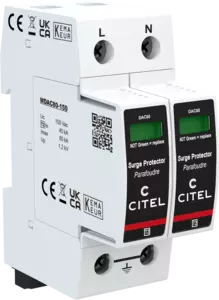

Type 2 AC surge protector - Re-inforced - pluggable
DAC80S-20-150
Part Number 821210122
Available within 3 weeks
- Re-inforced Type 2 AC surge protector
- In: 40 kA
- Imax: 80 kA
- Pluggable module for each phase
- Remote signaling
- EN 61643-11, IEC 61643-11 certified
- UL1449 ed.5 compliance
Datasheet
The new DAC80 range is defined by its high Imax parameter of 80 kA.
Classified in Type 2, the products of this range are intended to be installed inside the main electrical panel.
Its Imax setting of 80 kA makes the DAC80 recommended for installations located in areas susceptible to very strong lightning strikes. Thanks to its very high discharge capacity, this range will have a longer service life than conventional AC surge protection of Type 2 with Imax @ 40 kA.
The electrical diagram of the DAC80 series consists of a block of two high-energy varistors combined with a single thermal disconnect system.
CITEL is the only manufacturer to offer a complete range of products reaching such a high Imax.
The products comply with EN 61643-11, IEC 61643-11 and UL1449 ed.5.
Select another reference:
-
DAC80S-10-150
-
DAC80S-10-275
-
DAC80S-10-320
-
DAC80S-10-385
-
DAC80S-10-440
-
DAC80S-11-150
-
DAC80S-11-275
-
DAC80S-11-320
-
DAC80S-11-385
- DAC80S-11-440
-
DAC80S-20-150
-
DAC80S-20-275
-
DAC80S-20-320
-
DAC80S-20-385
-
DAC80S-20-440
-
DAC80S-30-150
-
DAC80S-30-275
- DAC80S-30-320
-
DAC80S-30-385
-
DAC80S-30-440
-
DAC80S-31-150
-
DAC80S-31-275
-
DAC80S-31-320
-
DAC80S-31-385
- DAC80S-31-440
-
DAC80S-40-150
-
DAC80S-40-275
-
DAC80S-40-320
-
DAC80S-40-385
-
DAC80S-40-440
|
SPD type
|
IEC | 2 |
|
Network
|
120 V single-phase | |
|
AC system
|
TN | |
|
Max. AC operating voltage
|
Uc | 150 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 180 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | < 1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 40 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 80 kA |
|
Protection mode(s)
|
L/PE and N/PE | |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.2 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.2 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
|
Technology
|
MOV | |
|
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
|
Format
|
Plug-in modular box | |
|
Plugable
|
Yes | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Disconnection indicator
|
1 mechanical indicator by pole - Red/Green | |
|
Spare module(s)
|
MDAC80-150 | |
|
Remote signaling of disconnection
|
Output on changeover contact | |
|
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |
|
Dimensions
|
See diagram - 2TE (EN43880) | |
|
Weight
|
0.228 kg |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
|
Certification
|
KEMA |
|
Thermal disconnector
|
Internal | |
|
Installation ground fault breaker
|
Type 'S' or delayed | |
|
Back-up protection device
|
Fuses Type gG - 125 A |
