Surge Protection for Security Systems

All the safety devices used in your facilities are very sensitive and vulnerable to lightning and switching surges. If these systems are damaged by transient voltages, then the entire protection strategy could be compromised, with lives put at risk : surge protection is highly recommended.

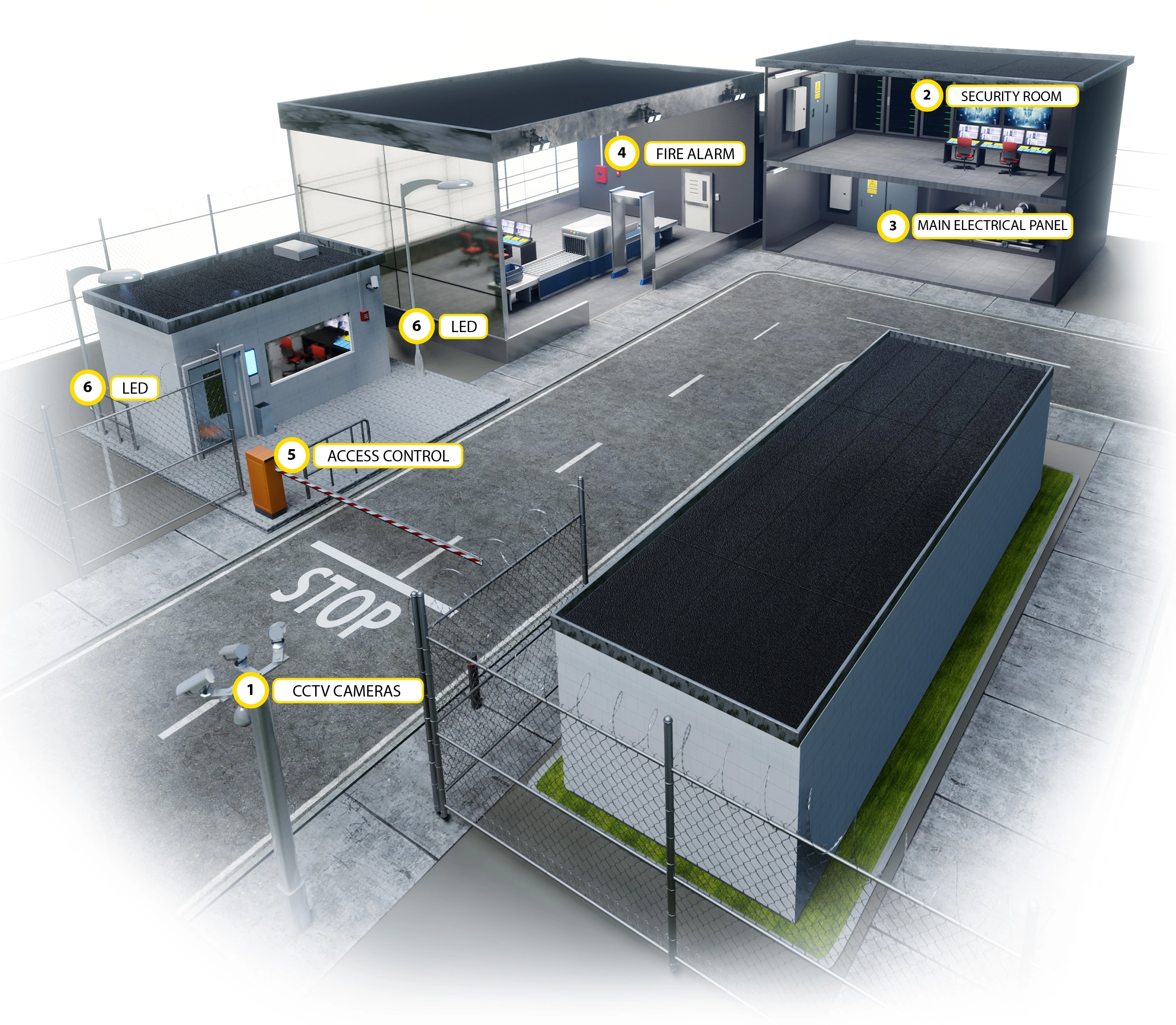

Selection of SPDs for Security Systems

1 - Surge Protectors for Survey Cameras

Location	Citel model	Type of SPDs
Anolog Camera	MSP-VM230-2P	Combined surge protectors
IP Cameras	CRMJ8-POE-C6A	POE++ and 10 Gigabit Ethernet
Coaxial lines as Video-transmission	CXC06-B/FM	Coaxial surge protector, BNC connector
10Gigabit Ethernet/POE++ networks	MJ8-POE-C6A	Ethernet surge protector, Shielded RJ45 connections on Cat6A cabling
10Gigabit Ethernet	MJ8-C6A	Ethernet surge protector, Shielded RJ45 connections on Cat6A cabling

2 - Surge Protectors for Control Rooms

Location	Citel model	Type of SPDs
Control room	RAK16-E-C6	19" Rack surge protector - 10/100/1000BaseT networks

3 - Surge Protectors for Main Electrical Panel

Location	Citel models	Type of SPDs
AC network - Main switchboard	DAC1-13S-31-275	Type 1+2+3 surge protector 3-phase+N

4 - Surge Protectors for fire Alarm

Location	Citel model	Type of SPDs
Fire alarm	DAC40CS-11-275	Type 2 (or 3) surge protector - Compact - Single phase
Fire alarm	DAC40CS-31-275	Type 2 (or 3) surge protector - Compact - 3-phase

5 - Surge Protector for Acces Control

Location	Citel model	Type of SPDs
Access control	DLA	Dataline surge protectors - DIN rail mounting

6 - Surge Protector for LED Lighting

Location	Citel model	Type of SPDs
Inside the cutouts of led lighting pole	DLPM1-230L	230 V single phase surge protector - DIN rail mounting
