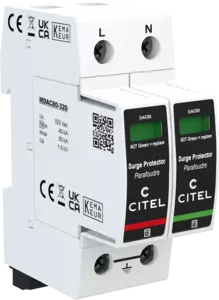

Type 2 AC surge protector - Re-inforced - pluggable

DAC80S-11-320
Part Number 821210342
DAC80S-11-320
Availability:
€185.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Re-inforced Type 2 AC surge protector
  • In: 40 kA
  • Imax: 80 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The new DAC80 range is defined by its high Imax parameter of 80 kA. Classified in Type 2, the products of this range are intended to be installed inside the main electrical panel. Its Imax setting of 80 kA makes the DAC80 recommended for installations located in areas susceptible to very strong lightning strikes. Thanks to its very high discharge capacity, this range will have a longer service life than conventional AC surge protection of Type 2 with Imax @ 40 kA. The electrical diagram of the DAC80 series consists of a block of two high-energy varistors combined with a single thermal disconnect system. CITEL is the only manufacturer to offer a complete range of products reaching such a high Imax. The products comply with EN 61643-11, IEC 61643-11 and UL1449 ed.5.
SPD type
2
Network
 230 V single-phase
AC system
 TT-TN
Max. AC operating voltage
Uc 320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 40 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 80 kA
Protection mode(s)
 L/N and N/PE
Protection level
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
 Up L/N 1.6 kV
Protection level N/PE
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
 Up N/PE 1.5 kV
Admissible short-circuit current
 Isccr 50 000 A
Technology
 MOV+GDT
Connection to Network
 By screw terminals: 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator by pole - Red/Green
Spare module(s)
 MDAC80-320
Remote signaling of disconnection
 Output on changeover contact
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 2TE (EN43880)
Weight
 0.142 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses Type gG - 125 A
