Type 1+2+3 AC surge protector

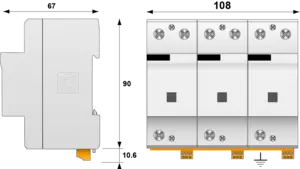

DS253VG-400
Type 1+2 AC surge protector - 3-phase
DS253VG-400
Part Number
2580
Availability:
€477.00 (excl. tax)
Add to cart
Shipping is only available to France.
OK
Available within 3 weeks
Type 1+2+3 unipolar surge protector
25 kA on 10/350µs impulse
Low voltage Up
Internal disconnection, status indicator and remote signaling
Optimized to TOV
IEC 61643-11 and UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The products of the range DS250VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The `Spark gap + Varistor` technology allows a very low level of protection and an absence of following current. The DS250VG is mounted on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.
Select another reference:
DS250VG-120
DS250VG-300
DS250VG-400
DS252VG-120
DS252VG-120/G
DS252VG-300
DS252VG-300/G
DS252VG-400
DS253VG-120
DS253VG-300
DS253VG-400
DS254VG-120
DS254VG-120/G
DS254VG-300
DS254VG-300/G
DS254VG-400
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Network
230/400 V 3-phase
AC system
IT
Nominal line voltage
Un
230/400 Vac
Max. AC operating voltage
Uc
440 Vac
Max. load current
if series connection
IL
100 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
770 Vac withstand
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
30 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
70 kA
Impulse current by pole
max. withstand 10/350µs by pole
Iimp
25 kA
Total lightning current
max. total withstand @ 10/350µs
Itotal
75 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
20 kV
Withstand on overvoltages IEEE C62.41.1
20 kV
Specific energy by pole
max. withstand 10/350 µs
W/R
156 kJ/ohm
Connection mode(s)
L/PE
Protection mode(s)
Common mode
Residual voltage
@ In (8/20 µs)
Up-in
1.1 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.5 kV
Admissible short-circuit current
Isccr
50 000 A
Technology
VG Technology (MOV+GSG)
SPD configuration
3-phase
Connection to Network
By screw terminals: 6-35mm² / by bus
Format
1-pole modular box assembled
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole
Remote signaling of disconnection
Output on changeover contact
Dimensions
See diagram
Weight
1 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
UL Recognized
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuse assembly: SFD1-25-30S / or Fuses Type gG 315 A
×
Description:
Type 1+2 AC surge protector - 3-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
UL Recognized
Technology:
VG Technology (MOV+GSG)
SPD configuration:
3-phase
Remote signaling of disconnection:
Output on changeover contact
SPD type :
1+2+3
Network:
230/400 V 3-phase
AC system:
IT
Max. AC operating voltage :
440 Vac
Residual Current :
None
Max. discharge current :
70 kA
Impulse current by pole :
25 kA
Admissible short-circuit current:
50 000 A
CITEL
Reference:
DS253VG-400
Part Number:
2580
Or equivalent
