AC Power
Type 1+2+3 AC surge protector

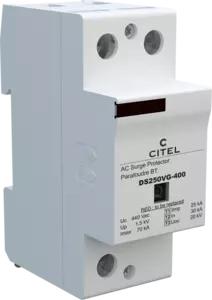

DS250VG-400
Type 1+2 AC surge protector - 1-pole
DS250VG-400
Part Number:
2578
Type 1+2+3 unipolar surge protector
25 kA on 10/350µs impulse
Low voltage Up
Internal disconnection, status indicator and remote signaling
Optimized to TOV
IEC 61643-11 compliance
UL1449 ed.5 recognition
Datasheet
Installation Sheet
Tender specifications
Contact Us
The DS250VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DS250VG is one-pole SPD and can be used in common mode or common and differential mode. DS250VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.
Select another reference:
DS250VG-120
DS250VG-300
DS250VG-400
DS252VG-120
DS252VG-120/G
DS252VG-300
DS252VG-300/G
DS252VG-400
DS253VG-120
DS253VG-300
DS253VG-400
DS254VG-120
DS254VG-120/G
DS254VG-300
DS254VG-300/G
DS254VG-400
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Network
230/400 V
Nominal line voltage
Un
400 Vac
Max. AC operating voltage
Uc
440 Vac
Max. load current
IL
100 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
580 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
770 Vac withstand
Residual Current
Ipe
None
Follow current
If
None
Nominal discharge current
In
30 kA
Max. discharge current
Imax
70 kA
Impulse current by pole
Iimp
25 kA
Withstand on Combination waveform IEC 61643-11
Uoc
20 kV
Withstand on overvoltages IEEE C62.41.1
20 kV
Specific energy by pole
W/R
156 kJ/ohm
Connection mode(s)
L/N or L/PE
Protection mode(s)
Common Mode or Differential Mode
Protection level
Up
1.5 kV
Residual voltage
Up-in
1.1 kV
Residuel voltage at 5 kA
Up-5kA
1 kV
Admissible short-circuit current
Isccr
50 000 A
Technology
VG Technology (MOV+GSG)
SPD configuration
1-pole
Connection to Network
By screw terminals: 6-35mm² / by bus
Format
1-pole modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator
Remote signaling of disconnection
Output on changeover contact

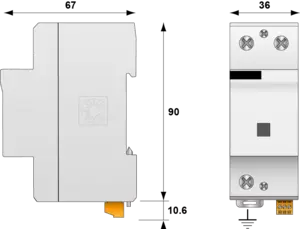

Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
Fuses type gG - 315 A
×
