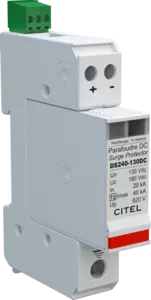

Type 2 DC surge protector
DS240S-130DC
DC power surge protector - 130 Vdc
DS240S-130DC
Part Number
310811
Discover our latest innovation : the
DDC40CS-20-180
DC power surge protector
130 Vdc
Compact design
Imax: 40 kA
Pluggable module
Remote signaling
Very low Up protection level
Datasheet
ULCertificate_DS240S-130DC.pdf
Installation Sheet
Tender specifications
Contact Us
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Select another reference:
DS240S-110DC
DS240S-130DC
DS240S-220DC
DS240S-280DC
DS240S-350DC
DS240S-75DC
DS240S-95DC
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
DC or PV network 130Vdc
Nominal DC voltage
Un-dc
130 Vdc
Nominal PV voltage
Uocstc
130 Vdc
Max. AC operating voltage
Uc
150 Vac
Max. PV operating voltage
Ucpv
180 Vdc
Max. DC operating voltage
Uc
180 Vdc
Max. load current
@25°C
IL
20 A
Residual Current
Leakage current to Ground
Ipe
< 0.1 mA
Operating current
Continious current at Uc
Ic
< 0.1 mA
PV Permanent Operating current
Current consumption at Ucpv
Icpv
< 0.1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
80 kA
Current withstand short circuit PV
Iscpv
1000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common mode
Technology
MOV
SPD configuration
2-poles
Connection to Network
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from DC network
Disconnection indicator
2 mechanical indicators
Spare module(s)
DSM240-130DC
Remote signaling of disconnection
Output on changeover contact
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
UL
Thermal disconnector
Internal
Back-up protection device
Fuses type gG - 20A
×
Description:
DC power surge protector - 130 Vdc
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
UL / EAC
Technology:
MOV
SPD configuration:
2-poles
Remote signaling of disconnection:
Output on changeover contact
SPD type :
2
Network:
DC or PV network 130Vdc
Max. AC operating voltage :
150 Vac
Max. PV operating voltage:
180 Vdc
Max. DC operating voltage:
180 Vdc
Residual Current :
< 0.1 mA
Max. discharge current :
40 kA
Total Maximum discharge current :
80 kA
