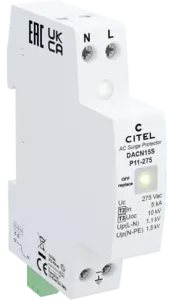

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN15S-P11-275
Part Number 70146022
DACN15S-P11-275
  • Compact single-phase Type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Commun/Differential mode
  • Monobloc module
  • Remote signaling
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance

The DACN15-P surge protections are usable for all single-phase AC applications. Type 2, these products maintain a Nominal discharge current (In) of 5 kA and a Maximum discharge current (Imax) of 15 kA. According to the IEC standards, a product with an In of 5 kA can be installed in the main panel, but it can also be placed in the secondary panel, downstreaming the primary SPD. The new product DACN15-P11-275/INV with an inverted base, allowing bottom cabling for special applications extending the series.


SPD type
IEC

2 (or 3)

Network

230/400 V

AC system

TT-TN

Max. AC operating voltage
Uc

275 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

5 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

15 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Protection mode(s)

L/N and N/PE

Protection level L/N
@ In (8/20µs)
Up L/N

1.1 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Admissible short-circuit current
Isccr

10 000 A

Technology

MOV+GDT

SPD configuration

Single phase

Connection to Network

By screw terminals: 1.5-10mm²

Compact

Yes

Format

Monobloc modular box

Plugable

No

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

Green LED OFF

Remote signaling of disconnection

Option DACN15S-P11-275: output on changeover contact

Wiring for remote signaling

1.5 mm² max.

Max. Voltage/Current for remote signaling

250 V / 0.5 A (AC) / 30 V / 3 A (DC)

Dimensions

See diagram - 1TE (EN43880)

Weight

0.093 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

20 A min. - 125 A max. - Fuses type gG
