Type 2 AC surge protector - Single-phase

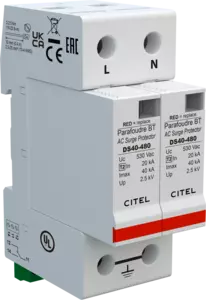

DS42S-480
Part Number 461015
DS42S-480
  • Discover our latest innovation : the DAC50S-20-530
  • Type 2 AC Multipolar surge protector
  • In: 20 kA
  • Imax total: 80 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11, UL1449 ed.5

used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.

Select another reference:

Network

230-277 V Single-phase

AC system

TT-TN

Nominal line voltage
Un

230-277 Vac

Max. AC operating voltage
Uc

530 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

700 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

920 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 1 mA

Operating current
Continious current at Uc
Ic

0.5 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Connection mode(s)

L/PE and N/PE

Protection mode(s)

Common mode

Protection level N/PE
@ In (8/20µs)
Up N/PE

2.5 kV

Protection level L/PE
@ In (8/20µs)
Up L/PE

2.5 kV

Admissible short-circuit current
Isccr

25 000 A

IP degree

IP 20

SPD configuration

Single phase

Format

Plug-in modular box

Operating temperature
Tu

-40/+85°C

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator by pole

Spare module(s)

DSM40-480

Remote signaling of disconnection

Output on changeover contact

Weight

0.222 kg

Certification

CSA / UL Listed

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses type gG - 50 A
