Type 2 Wind Turbine surge protector
DS41S-1000
Type 2 AC surge protector - 2-pole - pluggable
DS41S-1000
Part Number
462921
Type 2 AC surge protector
In: 20 kA
Imax total: 40 kA
Pluggable module for each phase
Remote signaling
NF EN 61643-11, IEC 61643-11 compliance

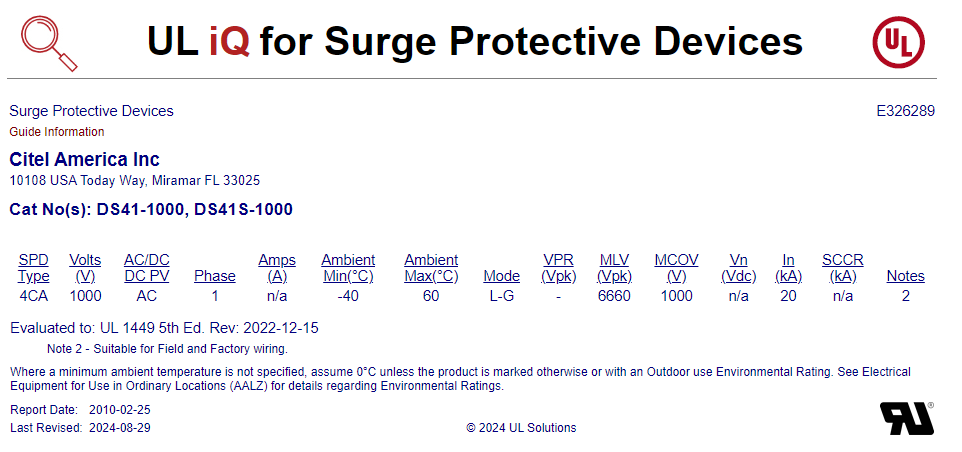

UL1449 ed.5 certified
Datasheet
Installation Sheet
Tender specifications
Contact Us
Used mainly for wind turbines of 4- phase networks at the converter and generator. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect 3-phase or 3-phase+Neutral AC networks.
Select another reference:
DS41S-1000
DS41S-1000/WD
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
Network
400/690 V
Nominal line voltage
Un
690 Vac
Max. AC operating voltage
Uc
1100 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
1400 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
1840 Vac disconnection
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Connection mode(s)
L/N or N/PE
Protection mode(s)
Common Mode or Differential Mode
Protection level
@ In (8/20µs)
Up
5 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
2-poles
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
2 mechanical indicators
Spare module(s)
DSM40-1000
Remote signaling of disconnection
Output on changeover contact
Dimensions
See diagram
Standards compliance
EN 61643-11 / IEC 61643-11
Certification
UL Recognized
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
×
Description:
Type 2 AC surge protector - 2-pole - pluggable
Standards compliance:
EN 61643-11 / IEC 61643-11
Certification:
UL Recognized
Technology:
MOV
SPD configuration:
2-poles
Remote signaling of disconnection:
Output on changeover contact
Network:
400/690 V
Max. AC operating voltage :
1100 Vac
Max. discharge current :
40 kA
Protection level :
5 kV
Admissible short-circuit current:
25 000 A
CITEL
Reference:
DS41S-1000
Part Number:
462921
Or equivalent
