AC Power
Type 2 (or 3) AC surge protector
DS98-400

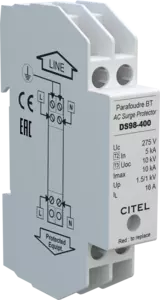

Compact single-phase type 2 (or 3) surge protector - Monobloc
DS98-400
Part Number:
3509011
Cost effective single-phase surge protector
Type 2 (or 3) monobloc
In : 5 kA
Imax : 10 kA
Common/Differential mode
Series or parallel wiring
EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS98 AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DS98 is equipped with an internal thermal safety which will disconnet the unit from the AC network in case of end of life. This disconnection will be indicate by the turn on of the red led in the front. Very compact, the DS98 surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DS98 provides both a common and differential mode protection.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
230 V single-phase
AC system
TN
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
275 Vac
Max. load current
IL
16 A
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
580 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
440 Vac disconnection
Residual Current
Ipe
None
Follow current
If
None
Nominal discharge current
In
5 kA
Max. discharge current
Imax
10 kA
Withstand on Combination waveform IEC 61643-11
Uoc
10 kV
Withstand on overvoltages IEEE C62.41.1
10 kV
Protection mode(s)
Common/Differential mode
Protection level L/N
Up L/N
1 kV
Protection level N/PE
Up N/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5mm² max.
Format
Monobloc modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
Red light on
Remote signaling of disconnection
option DS98S-400
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
Fuses type gG - 20A
×
