Type 2 (or 3) AC surge protector

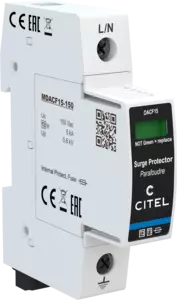

DACF15S-10-150
Type 2+3 AC surge protector - one-phase - pluggable with integrated fuse
DACF15S-10-150
Part Number:
821310121
Type 2 (or 3) AC surge protector
Interne Disconnection device
Low caliber of the internal connector = systematic coordination with upstream circuit breaker
In : 5 kA
Imax : 15 kA
Pluggable module for each phase
Remote signaling
EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The special feature of this series is the integrated and monitored back-up fuse, which makes the use of an additional external back-up fuse unnecessary. Type 2 (or 3) DACF15 SPDs are used mainly for primary surge protection of single and 3-phase AC networks at the main switchboard. In addition to their thermal disconnector, the range is equipped with a internal fuse against short-circuit currents, which avoidsthe use of a external fuse or circuit-breaker as requested by standard. The operation of one of the both disconnectors will activate the indicator and the remote signalling (option). This compact solution simplifies the implementation and minimum space. The DACF15 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase.
Select another reference:
DACF15S-10-150
DACF15S-10-275
DACF15S-10-320
DACF15S-10-440
DACF15S-11-275
DACF15S-30-275
DACF15S-30-440
DACF15S-31-275
DACF15S-40-440
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
230 Vac withstand
Residual Current
Ipe
< 1 mA
Follow current
If
None
Nominal discharge current
In
5 kA
Max. discharge current
Imax
15 kA
Withstand on Combination waveform IEC 61643-11
Uoc
10 kV
Protection level
Up
0.6 kV
Admissible short-circuit current
Isccr
100 000 A
Technology
MOV
SPD configuration
1-pole
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDACF15-150
Remote signaling of disconnection
output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Dimensions
See diagram - 1TE (EN43880)
Weight
0.108 kg
Standards compliance
IEC 61643-11 / EN 61643-11
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
internal (equivalent AC rating : 25 A, gG Type)
Integrated fuses
Yes
×
