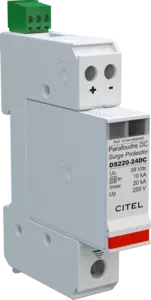

DC power surge protector - 24 Vdc

DS220S-24DC
Part Number 390511
DS220S-24DC
  • Discover our latest innovation : the DDC20CS-20-38
  • DC power surge protector
  • 24 Vdc
  • Compact design
  • Imax : 20 kA
  • Pluggable module
  • Remote signaling
  • Very low Up protection level
Contact Us
DS2x0-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life.These DIN rail SPD are connected in parallel to the equipment being protected.
Select another reference:
SPD type
IEC

2
Network

DC or PV network 24Vdc
Nominal DC voltage
 Un-dc

24 Vdc
Nominal PV voltage
 Uocstc

24 Vdc
Max. PV operating voltage
 Ucpv

38 Vdc
Max. PV operating voltage (star mounting)
 Ucpv

38 Vdc
Max. DC operating voltage
 Uc

38 Vdc
Max. load current @25°C
 IL

50 A
Residual Current
Leakage current to Ground
 Ipe

< 0.2 mA
Operating current
Continious current at Uc
 Ic

< 0.1 mA
PV Permanent Operating current
Current consumption at Ucpv
 Icpv

< 0.1 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

10 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA
Current withstand short circuit PV
 Iscpv

1000 A
Connection mode(s)

+/-/PE
Protection mode(s)

Common mode
Protection level +/PE (-/PE)
@ In (8/20µs)
 Up

250 V
Technology

MOV
SPD configuration

2-poles
Connection to Network

By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Outdoor application

No
Failsafe mode

Disconnection from DC network
Disconnection indicator

2 mechanical indicators
Spare module(s)

DSM220-24DC
Remote signaling of disconnection

Output on changeover contact
Dimensions

See diagram
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

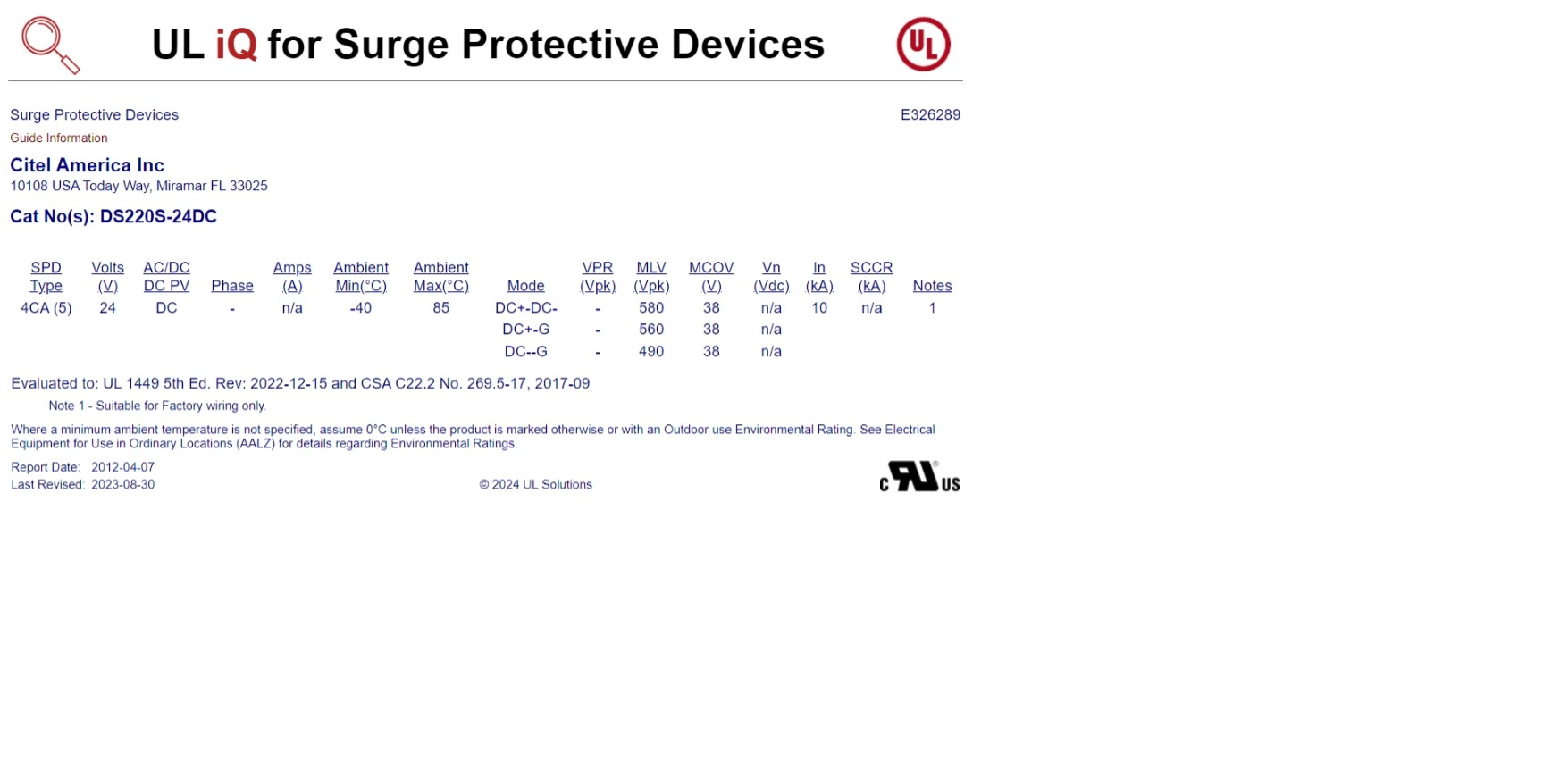

Certification

UL Recognized
Thermal disconnector

Internal
Back-up protection device

Fuses type gG - 20A
