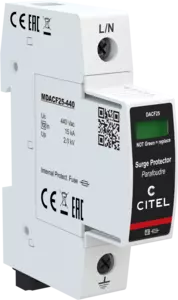

Type 2 AC surge protector - 1-pole - pluggable - Integrated fuse
DACF25S-10-440
Part Number 821410421
Available within 3 weeks
Type 2 AC surge protector
- In: 15 kA
- Imax: 25 kA
- Interne Disconnection device
- Pluggable module for each phase
- Remote signaling
- EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Type 2 DACF25 SPDs are used mainly for primary surge protection of single and 3-phase AC networks at the main switchboard.
In addition to their thermal disconnector, the range is equipped with an internal fuse against short-circuit currents, which avoids the use of an external fuse or circuit-breaker as requested by standard.
The operation of one of the both disconnectors will activate the indicator and the remote signalling (option).
This compact solution simplifies the implementation and minimum space.
The DACF25 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase.
Select another reference:
- DACF25S-10-150
- DACF25S-10-275
- DACF25S-10-320
- DACF25S-10-440
- DACF25S-11-150
- DACF25S-11-275
- DACF25S-11-320
- DACF25S-20-150
- DACF25S-20-275
- DACF25S-20-320
- DACF25S-20-440
- DACF25S-30-150
- DACF25S-30-275
- DACF25S-30-320
- DACF25S-30-440
- DACF25S-31-150
- DACF25S-31-275
- DACF25S-31-320
- DACF25S-31-440
- DACF25S-40-150
- DACF25S-40-275
- DACF25S-40-320
- DACF25S-40-440
SPD type
|
IEC | 2 |
Max. AC operating voltage
|
Uc | 440 Vac |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 580 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 770 Vac disconnection |
Residual Current
Leakage current to Ground
|
Ipe | < 1 mA |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 15 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 25 kA |
Connection mode(s)
|
L/N or N/PE | |
Protection level
@ In (8/20µs)
|
Up | 2 kV |
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 1.5 kV |
Admissible short-circuit current
|
Isccr | 100 000 A |
Technology
|
MOV | |
SPD configuration
|
Single phase | |
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
Format
|
Plug-in modular box | |
Plugable
|
Yes | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator - Red/Green | |
Spare module(s)
|
MDACF25-440 | |
Remote signaling of disconnection
|
Output on changeover contact | |
Wiring for remote signaling
|
1.5 mm² max. | |
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |
Dimensions
|
See diagram - 1TE (EN43880) | |
Weight
|
0.115 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
internal (equivalent AC rating : 40 A, gG Type) | |
Integrated fuses
|
Yes |
