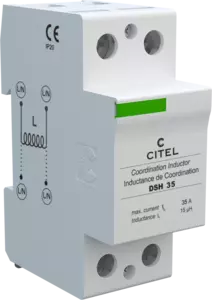

Coordination inductor

DSH35

Part Number 360806

Coordination inductors for surge protectors
For use with the DS series
35 A

These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors. They are necessary where the coordination cannot be accomplished using the 'natural' inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m), DSH inductors are DIN rail compatible and are connected in series on the line to be protected and depend on the maximum line current.

Select another reference:

Electrical Properties Mechanical Properties Schemas

Max. AC operating voltage	Uc	500 Vac
Max. load current @25°C	IL	35 A
Line inductance (± 10 %)		15 µH

Connection to Network		By screw terminals: 6-35mm²
Format		1-pole modular box
Mounting		Symmetrical rail 35 mm (EN 60715)
Housing material		Thermoplastic UL94 V-0
Operating temperature	Tu	-40/+85°C
Protection rating		IP20
Outdoor application		No
Wiring mode		1 DSH in series on each active wire
Dimensions		See diagram
Weight		0,344 kg
