AC Power
Accessories
DSH2x16
Coordination inductor
DSH2x16
Part Number
2690
Coordination inductors for surge protectors
For use with the DS series
2 x 16 A
Datasheet
Installation Sheet
Tender specifications
Contact Us
These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors. They are necessary where the coordination cannot be accomplished using the 'natural' inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m), DSH inductors are DIN rail compatible and are connected in series on the line to be protected and depend on the maximum line current.
Select another reference:
DSH2x16
DSH2x35
DSH35
DSH63
Electrical Properties
Mechanical Properties

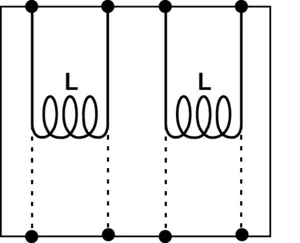

Schemas
Max. AC operating voltage
Uc
500 Vac
Max. load current
@25°C
IL
2 x 16 A
Connection to Network
By screw terminals: 6-35mm²
Format
1-pole modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Wiring mode
1 DSH in series on 2 active wires

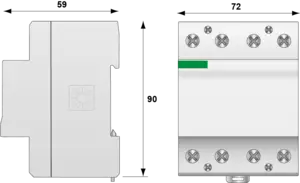

Dimensions
See diagram
Weight
0.37 kg
×
Description:
Coordination inductor
Max. AC operating voltage :
500 Vac
CITEL
Reference:
DSH2x16
Part Number:
2690
Or equivalent
