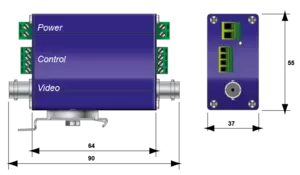

Surge protector for Video survey
Part Number: 420433
Certificates
Datasheet
|
Network
|
12 Vac/Vdc |
|
|
Network
|
Signal video |
|
|
Network
|
2 pairs signal 0-5 V |
|
|
AC system
|
TT-TN |
|
|
Max. DC operating voltage
|
Uc | 8 Vdc |
|
Max. DC operating voltage
|
Uc | 6 Vdc |
|
Max. DC operating voltage
|
Uc | 15 Vac/Vdc |
|
Max. frequency
|
f max. | 16 MHz |
|
Max. frequency
|
f max. | 16 MHz |
|
Max. frequency
|
f max. | 16 MHz |
|
Insertion loss
|
< 1dB |
|
|
Insertion loss
|
< 0.1 dB |
|
|
Insertion loss
|
< 1dB |
|
|
Max. load current @25°C
|
IL | 5 A |
|
Max. load current @25°C
|
IL | 300 mA |
|
Operating current
Continious current at Uc
|
Ic | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 5 kA |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 2.5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 5 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 10 kA |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 10 kV / 5 kA |
|
Protection mode(s)
|
Common/Differential mode |
|
|
Protection level
@ In (8/20µs)
|
Up | 20 V |
|
Protection level
@ In (8/20µs)
|
Up | 0.22 kV |
|
Protection level
@ In (8/20µs)
|
Up | 20 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 0.22 kV |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 0.22 kV |
|
Technology
|
MOV+GDT |
|
|
Connection to Network
|
By screw terminals: 2.5mm² max. |
|
|
Format
|
DIN rail or flange |
|
|
Mounting
|
DIN rail or plate (flange) |
|
|
Housing material
|
Anodized aluminum |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Green LED OFF and line cut-off |
|
|
Disconnection indicator
|
LED green OFF and AC network cut-off |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-21 / EN 61643-21 |
