19'' patch panel surge protector for high speed network STP

PL24-CAT6
Part Number 581515
PL24-CAT6
  • Surge protector for CAT6
  • 24 ports
  • 19'' patch panel 1 U
  • 100/1000/10Gigabit Ethernet network compliance
  • Connectors RJ45 shielded
  • Bi-directionnel

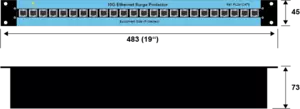

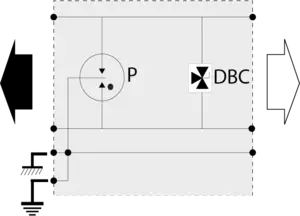

The PLx-CAT6 are surge protection devices in 19" format and offer protection against lightning and surge voltages for sensitive interfaces connected in a Gigabit Ethernet network. The protection circuit consists of a highly efficient combination of 3-pole gas arresters and low-capacitance diodes. The protection components are connected via standard RJ45 plugs. Up to 24 ports can be protected with the PL24-CAT6. The 19'' format allows easy installation in all standard 19'' cabinets.

Select another reference:

Network

10 Gigabit Ethernet, Cat.6 cabling

Nominal line voltage
Un

5 Vdc

Max. DC operating voltage
Uc

8 Vdc

Max. frequency
f max.

250 MHz

Max. data rate

10/100/1000 Mbps

Insertion loss

< 1 dB

Max. load current @25°C
IL

1000 mA

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

20 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

20 V

Max. capacitance
C

< 25 pF

Impulse current
2 x 10/350µs Test - D1 Category
Iimp

500 A

Line/Line Nominal discharge current
C2 Category
In L/L

500 A

Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
In L/PE

2000 A

Technology

GDT+TVS diode

SPD configuration

24 ports de 8 wires

Connection to Network

RJ45 shielded female input/output

Format

Rack 19''

Mounting

Baie 19''

Housing material

Aluminium

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Short-circuit

Disconnection indicator

Transmission interrupt

Spare module(s)

12-port PCB

Remote signaling of disconnection

No

Pinout

(1-2)(3-6)(4-5)(7-8)

Dimensions

See diagram

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497 B / IEEE 802-3an
