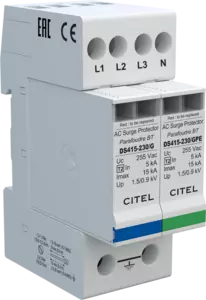

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable
DS415-230/G
DS415-230/G
Part Number: 451722
  • Compact 3-phase+N type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Common/Differential mode
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, CEI 61643-11, UL1449 ed.4 compliance
Installation Sheet

The DS415 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection.

This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS415 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.



SPD type
following IEC test
2 (ou 3)
Network
230/400 V 3-phase
AC system
TT-TN
Nominal line voltage
230 Vac
Max. AC operating voltage L-N
255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
without disconnection
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
without disconnection or with safety disconnection
440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
without disconnection or with safety disconnection
1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
None
Operating current
Continious current at Uc
0.5 mA
Follow current
None
Nominal discharge current
15 x 8/20 µs impulses
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
15 kA
Total Maximal discharge current
max. total withstand @ 8/20 µs
15 kA
Withstand on Combinaison waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
10 kV
Withstand on overvoltages IEEE C62.41.1
10 kV
Admissible short-circuit current
10000 A
Connection mode(s)
L/N and N/PE
Protection mode(s)
Common/Differential mode
Protection level
@ In (8/20µs)
0.9 kV
Protection level L/N
@ In (8/20µs)
0.9 kV
Protection level N/PE
@ In (8/20µs)
1.5 kV
Protection level CM/DM
@ In (8/20µs)
1.5/0.9 kV
Residuel voltage at 5 kA
@ 5 kA (8/20µs)
1.5/0.9 kV
Technology MOV
SPD configuration 3-phase+Neutral
Connection to Network by screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Outdoor application
False
Failsafe behavior Disconnection
Disconnection indicator 3 mechanical indicators
Spare module(s)
DSM415-230/G + DSM415-230/GPE
Remote signaling of disconnection
Option DS415S-230/G : output on changeover contact
Dimensions
See diagram
Certification
EAC
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Installation ground fault breaker Type 'S' or delayed
Thermal disconnector Internal
Fuses
Fuses type gG - 20A
