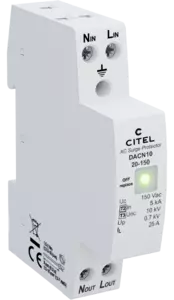

Compact single-phase type 2 (or 3) surge protector - Monobloc

DACN10-20-150
Part Number 70113011
DACN10-20-150
Availability:
€44.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Cost effective single-phase surge protector
  • Type 2 or 3 monobloc compact
  • In/Imax: 5 kA/10 kA
  • Max. load current: 25A
  • 2-port configuration (series mounting)
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
DACN10 AC surge protector is used for the 'secondary' protection of the single-phase networks against the surge voltages creating by lightning. DACN10 is equipped with an internal thermal safety which will disconnect the unit from the AC network in case of end of life. This disconnection is signaled by the extinction of the green LED on the front panel. Very compact, the DACN10 surge protector must be installed close by the equipment to protect, downstream a 'primary' surge protector. DACN10 provides both a common and differential mode protection.
Select another reference:
SPD type
IEC 2 (or 3)
Network
 120 V single-phase
AC system
 TN
Max. AC operating voltage
Uc 150 Vac
Max. load current
@25°C
 IL 25 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms breaker disconnection
Residual Current
Leakage current to Ground
 Ipe None
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 0.7 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 0.7 kV
Admissible short-circuit current
 Isccr 10 000 A
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 1.5-10mm²
Plugable
 No
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 Green LED OFF
Remote signaling of disconnection
 option DACN10S-20-150
Dimensions
 See diagram - 1TE (EN43880)
Weight
 0.090 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses type gG - 25A
