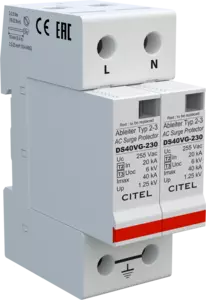

Type 2+3 AC surge protector - single-phase
DS42VG-230
Part Number 461551
- Discover our latest innovation : the DAC50VG-20-275
- Type 2 + 3 AC Multipolar surge protector
- In : 20 kA
- Imax total: 80 kA
- Pluggable module
- Follow and operating current : none
- No ageing
- Optional remote signaling state
- Optimized to TOV
- EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
DS40VG Type 2 +3 AC surge protector, using CITEL's 'VG technology', to completely eliminate the leakAge and operation current while providing maximum discharge capacity and an optimized level of protection.
The electric scheme includes a disconnector and its associated indicator ..
The DS40VG surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks.
Select another reference:
SPD type
|
IEC | 2+3 |
Network
|
230 V single-phase | |
AC system
|
TN | |
Nominal line voltage
|
Un | 230 Vac |
Max. AC operating voltage
|
Uc | 255 Vac |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac withstand |
Residual Current
Leakage current to Ground
|
Ipe | None |
Operating current
Continious current at Uc
|
Ic | None |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 80 kA |
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 6 kV |
Withstand on overvoltages IEEE C62.41.1
|
20 kV | |
Connection mode(s)
|
L/PE and N/PE | |
Protection mode(s)
|
Common mode | |
Residual voltage
@ In (8/20 µs)
|
Up-in | 0.8 kV |
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.25 kV |
Admissible short-circuit current
|
Isccr | 25 000 A |
Technology
|
VG Technology (MOV+GSG) | |
SPD configuration
|
Single phase | |
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus | |
Format
|
Plug-in modular box | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator by pole | |
Spare module(s)
|
DSM40VG-230 | |
Remote signaling of disconnection
|
option DS42VGS-230 : output on changeover contact | |
Dimensions
|
See diagram |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
Certification
|
UL Recognized |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
50 A min. - 125 A max. - Fuses Type gG |
