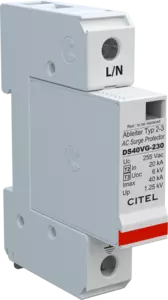

Type 2+3 AC surge protector - one-phase - pluggable

DS41VG-230
Part Number 331751
DS41VG-230
  • Discover our latest innovation : the DAC50VG-10-275
  • Type 2 + 3 AC surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Pluggable module
  • Follow and operating current : none
  • No ageing
  • Optional remote signaling state
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
DS40VG Type 2 +3 AC surge protector, using CITEL's 'VG technology', to completely eliminate the leakAge and operation current while providing maximum discharge capacity and an optimized level of protection. The electric scheme includes a disconnector and its associated indicator .. The DS40VG surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks.
Select another reference:
SPD type
IEC 2+3
Network
 230/400 V
Nominal line voltage
 Un 230 Vac
Max. AC operating voltage
Uc 255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac withstand
Residual Current
Leakage current to Ground
 Ipe None
Operating current
Continious current at Uc
 Ic None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 6 kV
Withstand on overvoltages IEEE C62.41.1
 20 kV
Connection mode(s)
 L/N or N/PE
Protection mode(s)
 Common Mode or Differential Mode
Protection level
@ In (8/20µs)
 Up 1.25 kV
Residual voltage
@ In (8/20 µs)
 Up-in 0.8 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 VG Technology (MOV+GSG)
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Spare module(s)
 DSM40VG-230
Remote signaling of disconnection
 option DS41VGS-230 : output on changeover contact
Dimensions
 See diagram
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 UL Recognized
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
