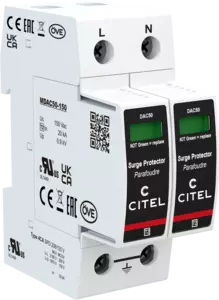

Type 2 AC surge protector - Single-phase
DAC50-20-150
Part Number 821110112
Available within 3 weeks
- Type 2 AC surge protector
- In: 20 kA
- Imax: 50 kA
- Pluggable module for each phase
- Remote signaling option
- EN 61643-11, IEC 61643-11 and UL1449 ed.5 certified
The pluggable surge protectors Type 2 DAC50, are designed to protect AC powerline at the main switchboard of the installation.
These SPDs are based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards and to provide a maximum protection efficiency, a high impulse current capability and an improved reliability.
The surge protectors DAC50 are available in multipolar version and in several voltages to protect single or 3-phase networks.
Select another reference:
SPD type
|
IEC | 2 |
Network
|
120 V single-phase | |
AC system
|
TN | |
Max. AC operating voltage
|
Uc | 150 Vac |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 180 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac disconnection |
Residual Current
Leakage current to Ground
|
Ipe | < 1 mA |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 100 kA |
Protection mode(s)
|
L/PE and N/PE | |
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 0.9 kV |
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.2 kV |
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.6 kV |
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.6 kV |
Admissible short-circuit current
|
Isccr | 50 000 A |
Network type
|
AC | |
Technology
|
MOV | |
SPD configuration
|
Single phase | |
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) | |
Format
|
Plug-in modular box | |
Plugable
|
Yes | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator by pole - Red/Green | |
Spare module(s)
|
MDAC50-150 | |
Remote signaling of disconnection
|
option DAC50S-20-150 : output on changeover contact | |
Wiring for remote signaling
|
1.5 mm² max. | |
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |
Dimensions
|
See diagram - 2TE (EN43880) | |
Weight
|
0.190 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
Certification
|
OVE / UL |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
50 A min. - 125 A max. - Fuses Type gG |
