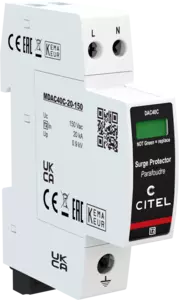

Compact 1-phase Type 2 surge protector - 150 V -Pluggable

DAC40CS-20-150
Part Number 821510121
DAC40CS-20-150
Availability:
€90.00 (excl. tax)

Available within 3 weeks

  • Compact Surge protector, 2-pole Type 2 or 3
  • Conductivity per pole: In= 20 kA; Imax= 40 kA
  • Common protection mode
  • Safe disconnect device
  • Transverse / longitudinal voltage protection
  • Energetically coordinated
  • Pluggable protection module
  • Remote signalling
  • IEC 61643-11 / EN 61643-11 certified
  • UL1449 ed.5 compliance

DAC40CS products are compact, Type 2 or type 3 surge protection (SPD) devices designed to protect single-phase or 3-phase systems. They are designed for DIN rail mounting and the SDP cartridges are replaceable. The DAC40CS series are available for supply voltages from 75 Vac to 350 Vac. The protection circuit consists of high energy varistors, with a thermal disconnection system. The SPD includes status signalling via a visual indicator and a remote signalling system.


SPD type
2
Network
120 V single-phase
AC system
TN
Nominal line voltage
Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
Ipe < 1 mA
Operating current
Continious current at Uc
Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 40 kA
Connection mode(s)
L/N and N/PE
Protection mode(s)
L/PE and N/PE
Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA 0.6 kV
Protection level L/N
@ In (8/20µs)
Up L/N 0.9 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE 0.9 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE 1.2 kV
Residual voltage at 10 kA
@ 8/20µs
Up-10kA 0.7 kV
Admissible short-circuit current
Isccr 10 000 A
Technology
MOV
SPD configuration
Single phase
Connection to Network
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Compact
Yes
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu -40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDAC40C-20-150
Remote signaling of disconnection
Output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.175 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
KEMA
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
