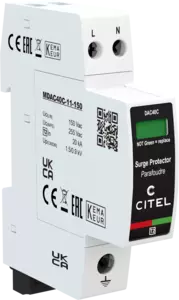

Compact Single-Phase Type 2 surge protector - 150 V - Pluggable

DAC40CS-11-150
Part Number 821520121
DAC40CS-11-150
Availability:
€90.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Compact Surge protector, 2-pole Type 2 or 3
  • Conductivity per pole: In= 20 kA; Imax= 40 kA
  • Common protection mode
  • Safe disconnect device
  • Transverse / longitudinal voltage protection
  • Energetically coordinated
  • Pluggable protection module
  • Remote signalling
  • IEC 61643-11 / EN 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
DAC40CS products are compact, Type 2 or type 3 surge protection (SPD) devices designed to protect single-phase or 3-phase systems. They are designed for DIN rail mounting and the SDP cartridges are replaceable. The DAC40CS series are available for supply voltages from 75 Vac to 350 Vac. The protection circuit consists of high energy varistors, with a thermal disconnection system. The SPD includes status signalling via a visual indicator and a remote signalling system.
SPD type
IEC 2
Network
 120 V single-phase
AC system
 TT-TN
Nominal line voltage
 Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe None
Operating current
Continious current at Uc
 Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 40 kA
Connection mode(s)
 L/N and N/PE
Protection mode(s)
 L/PE and N/PE
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 0.6 kV
Protection level L/N
@ In (8/20µs)
 Up L/N 0.9 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Residual voltage at 10 kA
@ 8/20µs
 Up-10kA 0.7 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV+GDT
SPD configuration
 Single phase
Connection to Network
 By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Compact
 Yes
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator - Red/Green
Spare module(s)
 MDAC40C-11-150
Remote signaling of disconnection
 Output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 1TE (EN43880)
Weight
 0.175 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
