Type 1+2+3 AC surge protector - 3-phase+N
DS134VG-230
DS134VG-230
Part Number: 571554
  • Type 1 + 2 + 3 AC surge protector
  • In : 20 kA
  • Iimp total : 50 kA on 10/350µs impulse
  • Pluggable module
  • Optimized to TOV
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 and UL1449 ed.4 compliance

The DS130VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DS130VG is one-pole SPD and can be used in common mode or common and differential mode. DS130VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.

Select another reference:

SPD type 1+2+3
Network 230/400 V 3-phase+N
AC system TNS
Nominal line voltage Un 230 Vac
Max. AC operating voltage L-N Uc 275 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 230 Vac withstand
Residual Current Ipe None
Follow current If None
Nominal discharge current In 20 kA
Max. discharge current Imax 50 kA
Impulse current by pole Iimp 12.5 kA
Total lightning current Itotal 50 kA
Withstand on Combination waveform IEC 61643-11 Uoc 20 kV
Withstand on overvoltages IEEE C62.41.1 20 kV
Specific energy by pole W/R 40 kJ/ohm
Connection mode(s) L/PE and N/PE
Protection mode(s) Common mode
Residual voltage Up-in 0.6 kV
Protection level L/PE Up L/PE 1.25 kV
Admissible short-circuit current Isccr 25000 A
Technology VG
SPD configuration 3-phase+Neutral
Connection to Network By screw terminals: 2.5-25 mm² / by bus
Format Plug-in modular box
Mounting Symmetrical rail 35 mm (DIN 60715)
Housing material Thermoplastic UL94-V0
Operating temperature Tu -40/+85°C
Protection rating IP20
Failsafe mode Disconnection
Disconnection indicator 1 mechanical indicator by pole
Spare module(s) DSM130VG-230
Remote signaling of disconnection option DS134VGS-230 : output on changeover contact

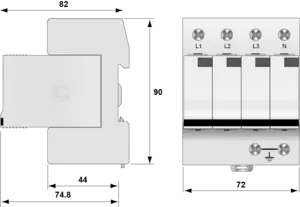

Dimensions See diagram
Weight 0.563 kg
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Certification UL / EAC / TUV
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
Fuses Fuses Type gG - 125 A
