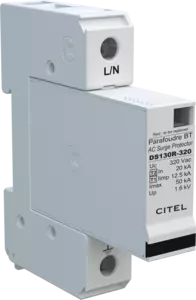

Type 1+2 AC surge protector - 1-pole
DS131RS-320
Part Number 571911
- Discover our latest innovation : the DAC1-13S-10-320
Datasheet
The DS130R is an extreme duty Type 1+2 designed to protect the entrance of the electrical installation.
The DS130R is a one-pole SPD and can be used in common mode or common and differential mode.
DS130R AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+neutral AC networks.
This SPD is DIN rail compatible.
Select another reference:
|
SPD type
|
IEC | 1+2 |
|
Network
|
230/400 V | |
|
Nominal line voltage
|
Un | 230 Vac |
|
Max. AC operating voltage
|
Uc | 320 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac disconnection |
|
Operating current
Continious current at Uc
|
Ic | < 1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 12.5 kA |
|
Withstand on overvoltages IEEE C62.41.1
|
20 kV | |
|
Specific energy by pole
max. withstand 10/350 µs
|
W/R | 40 kJ/ohm |
|
Connection mode(s)
|
L/N or N/PE | |
|
Protection mode(s)
|
Common Mode or Differential Mode | |
|
Protection level
@ In (8/20µs)
|
Up | 1.6 kV |
|
Admissible short-circuit current
|
Isccr | 25 000 A |
|
SPD configuration
|
Single phase | |
|
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus | |
|
Format
|
Plug-in modular box | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Failsafe mode
|
Disconnection from AC network | |
|
Disconnection indicator
|
1 mechanical indicator | |
|
Spare module(s)
|
DSM130R-320 | |
|
Remote signaling of disconnection
|
option DS131RS-320 : output on changeover contact | |
|
Dimensions
|
See diagram | |
|
Weight
|
0.177 kg |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
|
Certification
|
|
Thermal disconnector
|
Internal | |
|
Installation ground fault breaker
|
Type 'S' or delayed | |
|
Back-up protection device
|
Fuses Type gG - 125 A |
