Type 1+2 AC surge protector - 3-phase+N

DACN1-13S-40-760
Part Number 29114012
DACN1-13S-40-760
  • Type 1 + 2 AC surge protector
  • High energy discharge capacity(High duty)
  • In: 40 kA, Imax: 80kA
  • Iimp: 12.5 kA on 10/350µs impulse
  • Unpluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11 complied
Contact Us
The DACN1-13S is an high duty Type 1+2 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod, and in wind turbines and photovoltaic' application. Equipped with CITEL’s high energy discharge capacity technology, the range achieves an requirement on extreme high duty level, guaranteeing the possible application for high exposure location or/and high thunderstorm area, to ensure a more longer lifetime than expected. Furthermore, higher Uc(760Vac) and extreme low Up(3.5kV@40kA) bring advantage on wider range of application and higher protection efficiency for instructions.
SPD type
1+2
Network
 400/690 V
AC system
 TT-TNS
Max. AC operating voltage
Uc 760 Vac
Max. load current
@25°C
 IL 100 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 1000 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 1325 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 40 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 80 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 12.5 kA
Specific energy by pole
max. withstand 10/350 µs
 W/R 40 kJ/ohm
Protection level
@ In (8/20µs)
 Up 3.5 kV
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 2.3 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 MOV
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: 2.5-25mm² (35mm² rigid)
Format
 1-pole modular box
Plugable
 No
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator by pole - Red/Green
Remote signaling of disconnection
 Output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions

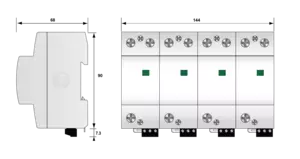

 See diagram - 8TE (EN43880)
Weight
 1.592 kg
Standards compliance
 EN 61643-11 / IEC 61643-11
Certification
 TUV Süd
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses Type gG - 125 A
