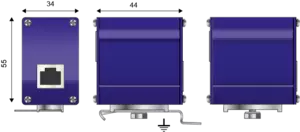

RJ45 surge protector for 1 ISDN line

MJ8-ISDN
Part Number 560209
MJ8-ISDN
Availability:
€77.00 (excl. tax)

Available within 3 weeks

  • Telecom line surge protector
  • ISDN line
  • Instantaneous installation
  • RJ45 connector
  • UL497A

The MJ8-ISDN surge protector is designed to protect sensitive telecom terminals against lightning surges. They are equipped with standard telecom connection allowing easy and intantaneous maintenance. Equipped with shielded RJ145 connector it protects ISDN line

Select another reference:

Network

ISDN, 48 V line

Nominal line voltage
Un

48 Vdc

Max. DC operating voltage
Uc

60 Vdc

Max. frequency
f max.

10 MHz

Max. data rate

30 Mbps

Insertion loss

< 1 dB

Max. load current @25°C
IL

1000 mA

Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
Up

70 V

Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
Up

70 V

Impulse current
2 x 10/350µs Test - D1 Category
Iimp

500 A

Line/Line Nominal discharge current
C2 Category
In L/L

500 A

Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
In L/PE

2000 A

Technology

GDT+TVS diode

SPD configuration

2-pairs+shielded

Connection to Network

RJ45 connector Female input/output

Format

Connector RJ45

Mounting

DIN rail / Wall / Plate

Accessory(s) provided

DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe

Housing material

Aluminium

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Short-circuit - transmision cut-off

Pinout

2-pairs (3-6)(4-5)

Dimensions

See diagram

Weight

0.112 kg

Standards compliance

IEC 61643-21 / EN 61643-21 / UL497B
