Type 2 PV surge protector
DS50VGPV-1500G/51
Type 2 PV surge protector
DS50VGPV-1500G/51
Part Number
481501
Type 2 surge protector for photovoltaic
VG technology
1500 Vdc
No leakAge, no operating currents
Improved life expectancy
In/Imax : 15 / 40 kA
Common/Differential mode protection
Remote signaling (option)
IEC 61643-31, EN 61643-31, EN 50539-11 compliance
UL1449 ed.5 certified
Datasheet
CITEL_Certif_UL_DS50VGPV-1500G:51.pdf
Installation Sheet
Tender specifications
Contact Us
DS50VGPV-G/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. The DS50VGPV-G/51 SPDs incorporates CITEL's exclusive patented 'VG technology' guarantying a total absence of leakAge current and maximum reliability.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
PV network 1250 Vdc
Nominal PV voltage
Uocstc
1250 Vdc
Max. PV operating voltage
Ucpv
1500 Vdc
Residual Current
Leakage current to Ground
Ipe
None
PV Permanent Operating current
Current consumption at Ucpv
Icpv
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
15 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
60 kA
Current withstand short circuit PV
Iscpv
15 000 A
Connection mode(s)
+/-/PE
Protection mode(s)
Common/Differential mode
Protection level +/-
@ In (8/20µs)
Up
6.8 kV
Protection level +/PE (-/PE)
@ In (8/20µs)
Up
3.4 kV
Technology
VG Technology (MOV+GSG)
Connection to Network
By screw terminals: 2.5-25mm²
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection SPD of the PV line
Disconnection indicator
2 mechanical indicators
Spare module(s)
DSM50VGPV-1500G/51
Remote signaling of disconnection
Option DS50VGPVS-1500G/51 - output on changeover contact

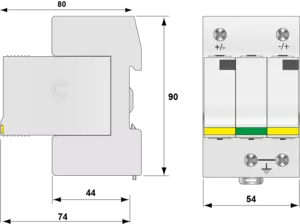

Dimensions
See diagram
Standards compliance
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification
UL
Thermal disconnector
Internal
Back-up protection device
Without
×
Description:
Type 2 PV surge protector
Standards compliance:
IEC 61643-31 / EN 61643-31 / EN 50539-11 / UL1449 ed.5
Certification:
UL / EAC
Technology:
VG Technology (MOV+GSG)
Remote signaling of disconnection:
Option DS50VGPVS-1500G/51 - output on changeover contact
SPD type :
2
Network:
PV network 1250 Vdc
Max. PV operating voltage:
1500 Vdc
Residual Current :
None
Max. discharge current :
40 kA
Total Maximum discharge current :
60 kA
CITEL
Reference:
DS50VGPV-1500G/51
Part Number:
481501
Or equivalent
