Surge protector for POE ++ and Category 5E cabling network
Part Number: 581519
MJ8-POE-A
- POE++ Compatible (IEEE 802.3bt)
- 1Gb (5-100m) with Cat5E S/FTP cabling
- Shielded RJ45 connectors
- Indoor applications, IP20 (NEMA 2)
- Metallic enclosure
- Conforms to IEC/EN 61643-21
- SPD categories D1, C3, C2, C1
- 16kA total surge discharge capability
The MJ8-POE is designed to protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages.
The MJ8-POE surge protector is deployed in signal network applications with data transmission speeds of 100 and 1000 Mbps.

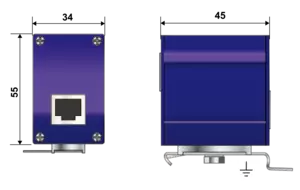

The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks.
The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
Certificates
Datasheet
|
Network
|
1Gb/s on Cat5E S/FTP cabling |
|
|
Protection modes (network)
|
CM / DM |
|
|
Protection modes (POE)
|
CM (Common Mode) |
|
|
Transmission standard
|
IEEE 802.3bt |
|
|
Lightning Protection Zones (LPZ)
|
0 - 3 |
|
|
Max. operating voltage (DATA)
|
Uc | 60 Vdc |
|
Max. operating voltage (POE)
|
Uc | 60 Vdc |
|
Max. frequency, in the channel
|
f max. | 100 MHz |
|
Max. data rate
|
1 Gbps |
|
|
Max. load current @25°C
|
IL | 2 A |
|
Max. POE power (4PPOE)
|
100 W |
|
|
Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications X-X (Line/Line)
|
In | 100V / 50A |
|
Nominal discharge current
C2 (1.2/50us / 8/20µs), 10 applications X-C (Line/Earth)
|
In | 4 kV / 2 kA |
|
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
|
Imax | 2 kA |
|
Max. discharge current
max. withstand @ 8/20 µs, 8X-C (1&2+3&6+4&5+7&8 to Earth)
|
Imax Total | 16 kA |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 80 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 700 V |
|
Protection Level
C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
|
Up | 700 V |
|
Impulse current
D1 (10/350µs), 2 applications, 8X-C (1&2+3&6+4&5+7&8 - Earth)
|
Iimp Total | 500 A |
|
Line resistance (± 10%)
|
~ 0 ohms |
|
|
Capacitance
@1MHz, X-C (Line/Earth)
|
C | < 5 pF |
|
Technology
|
GDT+TVS diode |
|
|
SPD configuration
|
8 wires+shielded |
|
|
Connection to Network
|
RJ45 shielded connectors Female input/output |
|
|
Format
|
Metallic box with connectors input/output |
|
|
Mounting
|
DIN rail / Wall / Plate |
|
|
Accessory(s) provided
|
Screw, washer, cable shoe, earthing plate, DIN rail adapter |
|
|
Housing material
|
Metallic |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Ingress Protection rating
|
IP20 (NEMA 2) |
|
|
Failsafe mode
|
Transmission cut-off - Fault mode 2 (short-circuit) |
|
|
Disconnection indicator
|
Transmission interrupt - default mode 2 |
|
|
Pinout
|
(1-2)(3-6)(4-5)(7-8) |
|
|
Dimensions
|
See diagram |
|
|
Weight
|
0.12 kg / 0.26 lbs |
|
Standards compliance
|
IEC 61643-21 / EN 61643-21 / UL497 B IEEE 802-3af/3at/3bt |
|
|
UL Category
|
QVGQ - Isolated Loop Circuit Protectors |
|
|
Certification
|
UL listed |
|
|
Environmental standards
|
EU RoHS |
