Isolating spark gap (ISG)
Part Number: 90231509

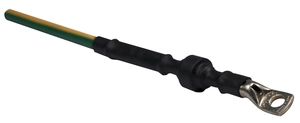

BF PC 250/20
- Isolating spark gap
- Outdoor application
- Max. discharge current: 100 kA
- EN 62561-3 compliance
These spark gap are designed to protect metallic elements, like antennas, poles, pipes, roofing equipment…which are not connected to earth for operating reason, against the risk of flashover during strike on the installation.
BFP100 is a specific version of the high energy gas tube P100, featured with isolated sleeve for outdoor application.
Certificates
Datasheet
|
Rated DC withstand voltage
|
Uw DC | 200 V |
|
Rated AC withstand voltage
|
Uw AC | 140 V |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 100 kA |
|
Impulse current by pole
max. withstand 10/350µs by pole
|
Iimp | 50 kA |
|
Classification following IEC 62561-3
|
N |
|
|
Rated impulse sparkover voltage
1kV/µs
|
Ur Iimp | 900 V |
|
Technology
|
Gas discharge tube |
|
|
Connection to Network
|
Wire (BF PS) wire terminal (BF PC) |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP67 |
|
|
Outdoor application
|
Yes |
|
|
Number of units per package
|
1 unit per packaging |
|
|
Dimensions
|
See diagram |
|
|
Weight
|
0.057 kg |
|
Standards compliance
|
EN 62561-3 |
|
|
RohS compliance
|
Yes |
