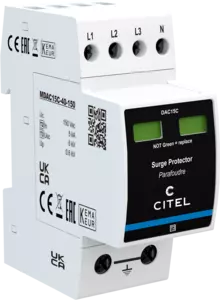

Type 2 (or 3) AC surge protector - 3-phase+N
DAC15C-40-150
DAC15C-40-150
Part Number: 821610112
  • Compact 3-phase+N type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Common mode/differential
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11, UL1449 ed.3 compliance

The pluggable compact surge protectors Type 2 or Type 3 DACC, are designed to protect electrical installation at the main switchboard or at secondary panels.. Their compact format allow to install it in limited space. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. guaranteeing a maximum protection efficiency, an high impulse current capability and a improved reliability. DACC surge protectors are available in 2 impulse current versions (DAC15C et DAC40C), in multipolar configuration and in several operating voltages to protect all kind of single or 3-phase AC networks.


SPD type 2 (ou 3)
Network 120/208 V
AC system TN
Max. AC operating voltage L-N Uc 150 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 230 Vac disconnection
Residual Current Ipe < 1 mA
Follow current If None
Nominal discharge current In 5 kA
Max. discharge current Imax 15 kA
Total Maximal discharge current Imax Total 60 kA
Withstand on Combination waveform IEC 61643-11 Uoc 10 kV
Protection mode(s) L/PE
Protection level L/PE Up L/PE 0.6 kV
Admissible short-circuit current Isccr 10 000 A
Technology MOV
SPD configuration 3-phase+Neutral
Connection to Network by screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35 mm² rigid)
Format Plug-in modular box
Mounting Symmetrical rail 35 mm (DIN 60715)
Housing material Thermoplastic UL94-V0
Operating temperature Tu -40/+85°C
Protection rating IP20
Failsafe mode Disconnection from AC network
Disconnection indicator 2 mechanical indicators - Green/Red
Spare module(s) MDAC15C-40-150
Remote signaling of disconnection Option DAC15CS-40-150 : output on changeover contact
Wiring for remote signaling 1.5 mm² max.
Maw. Voltage/Current for remote signaling 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions See diagram - 2TE (EN43880)
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Thermal disconnector Internal
Installation ground fault breaker Type 'S' or delayed
Fuses 20 A min. - 125 A max. - Type gG
