AC Power
Type 2 (or 3) AC surge protector

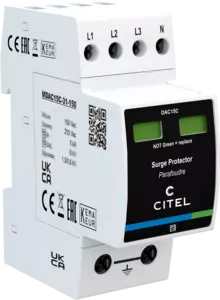

DAC15C-31-150
Type 2 (or 3) AC surge protector - 3-phase+N
DAC15C-31-150
Part Number
821620112
Availability:
€114.00 (excl. tax)
Add to cart
Shipping is only available to France.
OK
Available within 3 weeks
Compact 3-phase+N Type 2 (or 3) surge protector
In : 5 kA
Imax : 15 kA
Common mode/differential
Pluggable module
Remote signaling (option)
EN 61643-11, IEC 61643-11 certified
UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
120/208 V
AC system
TT-TN
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT
1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
15 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
40 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Protection mode(s)
L/PE and L/N
Protection level L/N
@ In (8/20µs)
Up L/N
0.6 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.5 kV
Admissible short-circuit current
Isccr
10 000 A
Network type
AC
Technology
MOV+GDT
SPD configuration
3-phase+Neutral
Connection to Network
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Compact
Yes
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
2 mechanical indicators - Red/Green
Spare module(s)
MDAC15C-31-150
Remote signaling of disconnection
Option DAC15CS-31-150: output on changeover contact
Dimensions
See diagram - 2TE (EN43880)
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
KEMA
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
×
Description:
Type 2 (or 3) AC surge protector - 3-phase+N
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
KEMA / EAC
Technology:
MOV+GDT
SPD configuration:
3-phase+Neutral
Compact:
Yes
Remote signaling of disconnection:
Option DAC15CS-31-150: output on changeover contact
SPD type :
2 (or 3)
Network:
120/208 V
AC system:
TT-TN
Max. AC operating voltage :
150 Vac
Residual Current :
None
Max. discharge current :
15 kA
Total Maximum discharge current :
40 kA
Admissible short-circuit current:
10 000 A
