Type 2 (or 3) AC surge protector - 3-phase

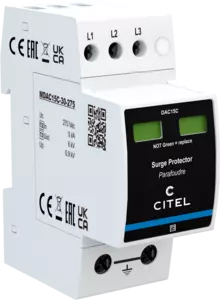

DAC15C-30-275
Part Number 821610213
DAC15C-30-275
Availability:
€94.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Compact 3-phase Type 2 (or 3) surge protector
  • In: 5 kA
  • Imax: 15 kA
  • Common mode
  • Pluggable module
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
SPD type
IEC

2 (or 3)
Network

230/400 V
AC system

TN
Max. AC operating voltage
Uc

275 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe

< 1 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

15 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

60 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

10 kV
Protection mode(s)

L/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE

0.9 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE

1.2 kV
Admissible short-circuit current
 Isccr

10 000 A
Network type

AC
Technology

MOV
SPD configuration

3-phase
Connection to Network

By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Compact

Yes
Format

Plug-in modular box
Plugable

Yes
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

2 mechanical indicators - Red/Green
Spare module(s)

MDAC15C-30-275
Remote signaling of disconnection

Option DAC15CS-30-275: output on changeover contact
Dimensions

See diagram - 2TE (EN43880)
Weight

0.219 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

20 A min. - 125 A max. - Fuses type gG
