DC power surge protector - 95 Vdc

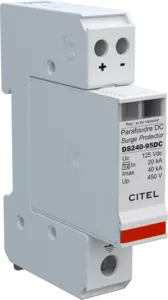

DS240-95DC
Part Number 310301
DS240-95DC
  • DC or PV power surge protector
  • 95 Vdc
  • Compact design
  • Imax: 40 kA
  • Pluggable module
  • Remote signaling (option)
  • Very low Up protection level
Contact Us
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Select another reference:
SPD type
2
Network
 DC or PV network 95Vdc
Nominal DC voltage
 Un-dc 95 Vdc
Nominal PV voltage
 Uocstc 95 Vdc
Max. AC operating voltage
Uc 95 Vac
Max. PV operating voltage
 Ucpv 125 Vdc
Max. DC operating voltage
 Uc 125 Vdc
Max. load current
@25°C
 IL 20 A
Residual Current
Leakage current to Ground
 Ipe < 0.1 mA
Operating current
Continious current at Uc
 Ic < 0.1 mA
PV Permanent Operating current
Current consumption at Ucpv
 Icpv < 0.1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 80 kA
Current withstand short circuit PV
 Iscpv 1000 A
Connection mode(s)
 +/-/PE
Protection mode(s)
 Common mode/Differential mode
Protection level +/PE (-/PE)
@ In (8/20µs)
 Up 450 V
Technology
 MOV
SPD configuration
 2-poles
Connection to Network
 By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Outdoor application
 No
Failsafe mode
 Disconnection from DC network
Disconnection indicator
 2 mechanical indicators
Spare module(s)
 DSM240-95DC
Remote signaling of disconnection
 Option DS240S-95DC : output on changeover contact
Dimensions
 See diagram
Weight
 0.112 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 UL Recognized
Thermal disconnector
 Internal
Back-up protection device
Fuses type gG - 20A
