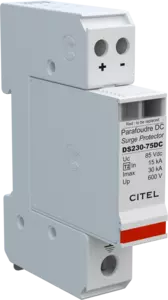

DC power surge protector - 75 Vdc

DS2x0-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life.These DIN rail SPD are connected in parallel to the equipment being protected.
Select another reference:
SPD type
2
Nominal DC voltage
 Un-dc 75 Vdc
Nominal PV voltage
 Uocstc 75 Vdc
Max. load current
@25°C
 IL 50 A
Connection mode(s)
 +/-/PE
Protection mode(s)
 Common mode
Protection level +/PE (-/PE)
@ In (8/20µs)
 Up 390 V
Technology
 MOV
Format
 Plug-in modular box
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from DC network
Disconnection indicator
 2 mechanical indicators
Dimensions
 See diagram
Weight
 0.112 kg
Thermal disconnector
 Internal
Back-up protection device
Fuses type gG - 20A
