Type 2 AC surge protector - 3-phase
DS74R-230
Part Number: 491502
- Re-inforced Type 2 AC Multipolar surge protector
- In: 30 kA
- Imax total: 280 kA
- Pluggable module by phase
- Remote signaling option
- IEC 61643-11, EN 61643-11 compliance
- UL1449 ed.4 appoved
Citel_Certif_UL_VZCA2_E326289.pdf
ULCertificate_DS74R-230.pdf
Citel_Certif_UL_VZCA8_E326289.pdf
Installation Sheet
DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel.
They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral.
This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards.
The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.
Select another reference:
| SPD type | 2 | |
| Network | 230/400 V 3-phase+N | |
| AC system | TNS | |
| Nominal line voltage | Un | 230 Vac |
| Max. AC operating voltage L-N | Uc | 255 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. | UT | 335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn | UT | 440 Vac disconnection |
| Residual Current | Ipe | < 4 mA |
| Operating current | Ic | < 1 mA |
| Follow current | If | None |
| Nominal discharge current | In | 30 kA |
| Max. discharge current | Imax | 70 kA |
| Total Maximal discharge current | Imax Total | 280 kA |
| Connection mode(s) | L/PE and N/PE | |
| Protection mode(s) | Common mode | |
| Residuel voltage at 5 kA | Up-5kA | 0.9 kV |
| Protection level N/PE | Up N/PE | 1.4 kV |
| Protection level L/PE | Up L/PE | 1.4 kV |
| Residual voltage at 10 kA | Up-10kA | 1 kV |
| Admissible short-circuit current | Isccr | 25000 A |
| Technology | MOV | |
| SPD configuration | 3-phase+Neutral | |
| Connection to Network | By screw terminals: 2.5-25 mm² / by bus | |
| Format | Plug-in modular box | |
| Mounting | Symmetrical rail 35 mm (DIN 60715) | |
| Housing material | Thermoplastic UL94-V0 | |
| Operating temperature | -40/+85°C | |
| Protection rating | IP20 | |
| Failsafe mode | Disconnection | |
| Disconnection indicator | 2 mechanical indicators by pole | |
| Spare module(s) | DSM70R-230 | |
| Remote signaling of disconnection | option DS74RS-230 : output on changeover contact | |

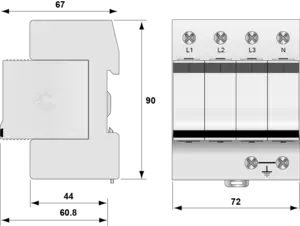

| Dimensions | See diagram | |
| Weight | 0.445 kg |
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. | |
| Certification | UL / CSA /EAC |
| Thermal disconnector | Internal | |
| Installation ground fault breaker | Type 'S' or delayed | |
| Fuses | Fuses Type gG - 100 A min. – 125 A max.– Type gG |
