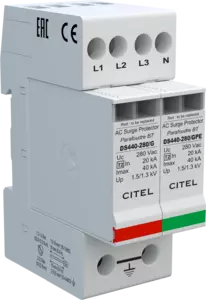

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable

DS440-280/G
Part Number 311122
DS440-280/G
  • Compact 3-Phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common/Differential mode
  • Pluggable module
  • Remode Signaling contact option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
The DS440 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS440 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
SPD type
IEC

2
Network

230/400 V 3-phase
AC system

TT-TN
Nominal line voltage
 Un

230 Vac
Max. AC operating voltage
Uc

280 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT

1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe

None
Operating current
Continious current at Uc
 Ic

0.5 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA
Impulse current N/PE
max. withstand 10/350µs
 Iimp N/PE

12.5 kA
Connection mode(s)

L/N and N/PE
Protection mode(s)

Common/Differential mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

1.5/0.9 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
Protection level CM/DM
@ In (8/20µs)
Up mc/md

1.5/1.3 kV
Admissible short-circuit current
 Isccr

10 000 A
Technology

MOV
SPD configuration

3-phase+Neutral
Connection to Network

By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

3 mechanical indicators
Spare module(s)

DSM440-280/G and DSM440-280/GPE
Remote signaling of disconnection

Option DS440S-280/G : output on changeover contact
Dimensions

See diagram
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

50 A min. - 125 A max. - Fuses Type gG
