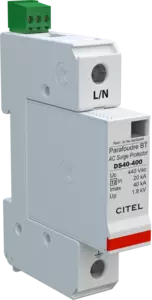

Type 2 AC surge protector - 1-pole - pluggable

DS41S-400
Part Number 3314111
DS41S-400
  • Discover our latest innovation : the DAC50S-10-440
  • Type 2 AC Multipolar surge protector
  • In: 20 kA
  • Imax total: 40 kA
  • Pluggable module for each phase
  • Remote signaling
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Network
 230/400 V
Nominal line voltage
 Un 400 Vac
Max. AC operating voltage
Uc 440 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 770 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 0.5 mA
Operating current
Continious current at Uc
 Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Connection mode(s)
 L/N or N/PE
Residuel voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 1.3 kV
Residual voltage at 10 kA
@ 8/20µs
 Up-10kA 1.5 kV
Admissible short-circuit current
 Isccr 25 000 A
SPD configuration
 Single phase
Format
 Plug-in modular box
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Spare module(s)
 DSM40-400
Remote signaling of disconnection
 Output on changeover contact
Certification
 CSA / UL Listed
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses type gG - 50 A
