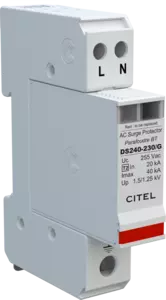

Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable

DS240-230/G
Part Number 311721
DS240-230/G
Availability:
€75.00 (excl. tax)
Add to cart
  • Discover our latest innovation : the DAC40C-11-275
  • Compact single-phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common/Differential mode
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5
Contact Us
The DS240 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS240 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
SPD type
2
Network
 230 V single-phase
AC system
 TT-TN
Nominal line voltage
 Un 230 Vac
Max. AC operating voltage
Uc 255 Vac
Max. load current
if series connection
 IL 20 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe None
Operating current
Continious current at Uc
 Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 40 kA
Connection mode(s)
 L/N and N/PE
Protection mode(s)
 Common/Differential mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 1.5/0.9 kV
Protection level L/N
@ In (8/20µs)
 Up L/N 1.25 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV+GDT
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Spare module(s)
 DSM240-230/G
Remote signaling of disconnection
 Option DS240S-230/G : output on changeover contact
Dimensions
 See diagram
Weight
 0.108 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 UL / CSA / TUV Süd
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
