Type 2+3 single-phase surge protector and filter

DS-HF
Part Number 77945
DS-HF
Availability:
€221.00 (excl. tax)

Available within 3 weeks

  • Surge protector with RFI filtering
  • In : 3 kA
  • Imax : 10 kA
  • Common and Differential mode protection
  • Low protection level
  • Operating/disconnection indicators
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance

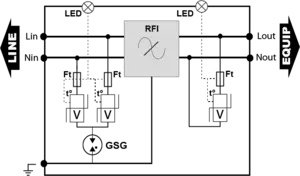

The DS-HF is a secondary type 2 surge protector and RFI filter especially designed to protect sensitive equipment connected to single-phase networks. The 'surge protection' function is a completed by RFI filtering: this combination of functions result in enhanced efficiency against transient overvoltages and RF interferences. It is connected in series on AC network, downstream of a primary type 2 SPD, installed in the main electrical switchboard, to protect a remote or sensitive equipment.

Select another reference:

SPD type
IEC

2+3

Network

230 V single-phase

AC system

TT-TN

Nominal line voltage
Un

230 Vac

Max. AC operating voltage
Uc

255 Vac

Max. load current @25°C
IL

16 A

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac disconnection

Residual Current
Leakage current to Ground
Ipe

< 1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

3 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

10 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

10 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

10 kV

Withstand on overvoltages IEEE C62.41.1

10 kV

RFI Filtering

0.1 - 30 MHz

Connection mode(s)

L/N/PE

Protection mode(s)

Common/Differential mode

Protection level
@ In (8/20µs)
Up

1 kV / 0.8 kV

Admissible short-circuit current
Isccr

10 000 A

SPD configuration

Single phase

Connection to Network

By screw terminals: 0.75-4mm²

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

Green LED(s) OFF

Dimensions

See diagram

Weight

0.236 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification
Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuses type gG - 20 A max. (if necessary)
