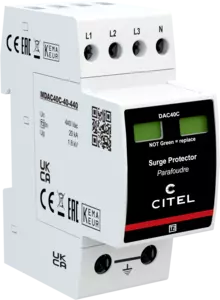

Type 2 AC surge protector - 3-phase
Part Number: 821510412
DAC40C-40-440
- Compact 3-phase+N Type 2 surge protector
- In : 20 kA
- Imax : 40 kA
- Common protection mode
- Pluggable module
- Remote signaling option
- EN 61643-11, IEC 61643-11 certified
- UL1449 ed.5 compliance
The DAC40C Type 2 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level.
Their compact format allows them to be installed in very small spaces.
The DAC40C SPDs are available have a discharge capacity of 40 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks.
Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Certificates
Datasheet
|
SPD type
|
IEC | 2 |
|
Network
|
230/400 V |
|
|
AC system
|
IT |
|
|
Max. AC operating voltage
|
Uc | 440 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 580 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 770 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | < 1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 160 kA |
|
Protection mode(s)
|
L/PE and N/PE |
|
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.8 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.8 kV |
|
Admissible short-circuit current
|
Isccr | 10 000 A |
|
Network type
|
AC |
|
|
Technology
|
MOV |
|
|
SPD configuration
|
3-phase+Neutral |
|
|
Connection to Network
|
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid) |
|
|
Compact
|
Yes |
|
|
Format
|
Plug-in modular box |
|
|
Plugable
|
Yes |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
2 mechanical indicators - Red/Green |
|
|
Spare module(s)
|
MDAC40C-40-440 |
|
|
Remote signaling of disconnection
|
Option DAC40CS-40-440 : output on changeover contact |
|
|
Dimensions
|
See diagram - 2TE (EN43880) |
|
|
Weight
|
0.273 kg |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
|
Certification
|
KEMA |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
50 A min. - 125 A max. - Fuses Type gG |
