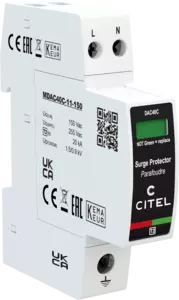

Compact 1-phase Type 2 (or 3) surge protector - 120 V -Pluggable
DAC40C-11-150
Part Number 821520111
Available within 3 weeks
- Compact single-phase type 2 (or 3) surge protector
- In : 20 kA
- Imax : 40 kA
- Commun/Differential mode
- Pluggable module
- Remote signaling (option)
- EN 61643-11, IEC 61643-11 certified
- UL1449 ed.5 compliance
The DAC40C Type 2 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level.
Their compact format allows them to be installed in very small spaces.
The DAC40C SPDs are available have a discharge capacity of 40 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks.
Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
SPD type
|
IEC | 2 |
Network
|
120 V single-phase | |
AC system
|
TT-TN | |
Max. AC operating voltage
|
Uc | 150 Vac |
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 180 Vac withstand |
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac disconnection |
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
|
UT | 1200 V/300A/200 ms withstand |
Residual Current
Leakage current to Ground
|
Ipe | None |
Follow current
|
If | None |
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 40 kA |
Protection mode(s)
|
L/N | |
Protection level L/N
@ In (8/20µs)
|
Up L/N | 0.9 kV |
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.5 kV |
Admissible short-circuit current
|
Isccr | 10 000 A |
Technology
|
MOV+GDT | |
SPD configuration
|
Single phase | |
Connection to Network
|
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid) | |
Compact
|
Yes | |
Format
|
Plug-in modular box | |
Plugable
|
Yes | |
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
Housing material
|
Thermoplastic UL94 V-0 | |
Operating temperature
|
Tu | -40/+85°C |
Protection rating
|
IP20 | |
Failsafe mode
|
Disconnection from AC network | |
Disconnection indicator
|
1 mechanical indicator - Red/Green | |
Spare module(s)
|
MDAC40C-11-150 | |
Remote signaling of disconnection
|
Option DAC40CS-11-150: output on changeover contact | |
Wiring for remote signaling
|
1.5 mm² max. | |
Max. Voltage/Current for remote signaling
|
250 V / 0.5 A (AC) / 30 V / 3 A (DC) | |
Dimensions
|
See diagram - 1TE (EN43880) | |
Weight
|
0.090 kg |
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
Certification
|
KEMA |
Thermal disconnector
|
Internal | |
Installation ground fault breaker
|
Type 'S' or delayed | |
Back-up protection device
|
50 A min. - 125 A max. - Fuses Type gG |
