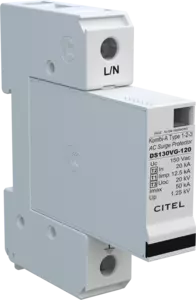

Type 1+2 AC surge protector - 1-pole

DS131VG-120
Part Number 571651
DS131VG-120
  • Discover our latest innovation : the DAC1-13VG-10-150
  • Type 1 + 2 + 3 AC surge protector
  • In : 20 kA
  • Iimp : 12,5 kA on 10/350µs impulse
  • Pluggable module
  • Optimized to TOV
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
The DS130VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DS130VG is one-pole SPD and can be used in common mode or common and differential mode. DS130VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.
Select another reference:
SPD type
1+2+3
Network
 120/208 V
Nominal line voltage
 Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac withstand
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 50 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 12.5 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 20 kV
Withstand on overvoltages IEEE C62.41.1
 20 kV
Specific energy by pole
max. withstand 10/350 µs
 W/R 40 kJ/ohm
Connection mode(s)
 L/N or N/PE
Protection mode(s)
 Common/Differential mode
Protection level
@ In (8/20µs)
 Up 1.25 kV
Residual voltage
@ In (8/20 µs)
 Up-in 0.4 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 VG Technology (MOV+GSG)
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator
Spare module(s)
 DSM130VG-120
Remote signaling of disconnection
 option DS131VGS-120 : output on changeover contact
Dimensions
 See diagram
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 UL Recognized
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses Type gG - 125 A
