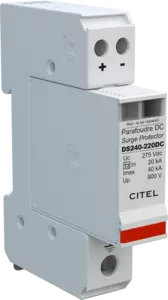

DC power surge protector - 220 Vdc
DS240-220DC
Part Number 310201
- Discover our latest innovation : the DDC40C-20-275
- DC or PV power surge protector
- 220 Vdc
- Compact design
- Imax: 40 kA
- Pluggable module
- Remote signaling (option)
- Very low Up protection level
Datasheet
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges.
It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life.
These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
Select another reference:
|
SPD type
|
IEC | 2 |
|
Network
|
DC or PV network 220Vdc | |
|
Nominal DC voltage
|
Un-dc | 220 Vdc |
|
Nominal PV voltage
|
Uocstc | 220 Vdc |
|
Max. AC operating voltage
|
Uc | 210 Vac |
|
Max. PV operating voltage
|
Ucpv | 275 Vdc |
|
Max. DC operating voltage
|
Uc | 275 Vdc |
|
Max. load current @25°C
|
IL | 50 A |
|
Residual Current
Leakage current to Ground
|
Ipe | < 0.1 mA |
|
Operating current
Continious current at Uc
|
Ic | < 0.1 mA |
|
PV Permanent Operating current
Current consumption at Ucpv
|
Icpv | < 0.1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 80 kA |
|
Current withstand short circuit PV
|
Iscpv | 1000 A |
|
Connection mode(s)
|
+/-/PE | |
|
Protection mode(s)
|
Common mode | |
|
Protection level +/PE (-/PE)
@ In (8/20µs)
|
Up | 900 V |
|
Technology
|
MOV | |
|
SPD configuration
|
2-poles | |
|
Connection to Network
|
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground) | |
|
Format
|
Plug-in modular box | |
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) | |
|
Housing material
|
Thermoplastic UL94 V-0 | |
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 | |
|
Outdoor application
|
No | |
|
Failsafe mode
|
Disconnection from DC network | |
|
Disconnection indicator
|
2 mechanical indicators | |
|
Spare module(s)
|
DSM240-220DC | |
|
Remote signaling of disconnection
|
Option DS240S-220DC : output on changeover contact | |
|
Dimensions
|
See diagram | |
|
Weight
|
0.123 kg |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 | |
|
Certification
|
UL Recognized |
|
Thermal disconnector
|
Internal | |
|
Back-up protection device
|
Fuses type gG - 20A |
